Clean room must meet the standards of the International Organization of Standardization (ISO) in order to be classified. The ISO was founded in 1947 to implement international standards for sensitive aspects of scientific research and business practices, such as the work of chemicals, volatile materials, and sensitive instruments. Although the organization was created voluntarily, the standards established have set basic principles that are honored by organizations around the world. Today, the ISO has over 20,000 standards that companies can refer to.
In 1960, Willis Whitfield developed and designed the first clean room. Clean rooms are designed and designed to protect their processes and contents from any outside environmental factors. The people who use the room and the items that are tested or constructed in it may prevent the clean room from meeting its standards of cleanliness. Special controls are required to eliminate these problematic elements as much as possible.
The person using the room and the items tested or constructed in the room may prevent the clean room from meeting its cleanliness standards. Special controls are required to eliminate these problematic elements as much as possible.
In U.S. Federal Standard 209 (A to D), the quantity of particles equal to and greater than 0.5µm are measured in one cubic foot of air, and this count is used to classify the clean room. This metric term is also accepted in the most recent 209E version of the Standard. The United States uses the federal standard 209E domestically. A more recent standard is TC 209 from the International Standards Organization. Both standards classify the clean room based on the number of particles found in the laboratory’s air. The clean room classification standards FS 209E and ISO 14644-1 require specific particle count measurements and calculations for clean room or clean area cleanliness levels. In the United Kingdom, British Standard 5295 is used to classify clean room. This standard is to be replaced by BS EN ISO 14644-1.
thing as zero particle concentration. Ordinary room air is approximately class 1,000,000 or ISO 9.

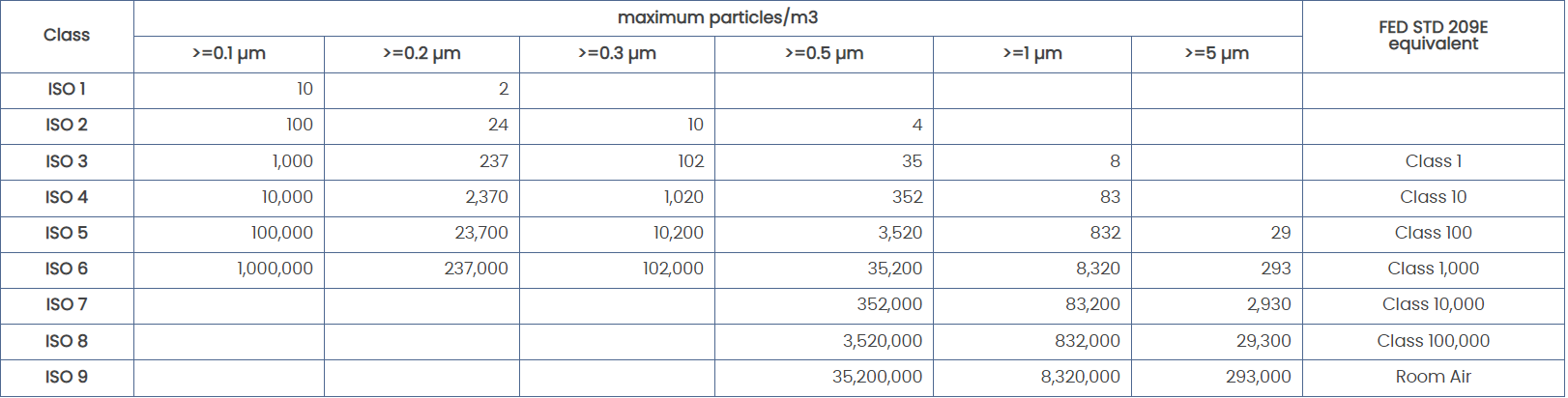

ISO 14644-1 Clean room Standards
BS 5295 Clean room Standards
A clean room classification measures the level of cleanliness by calculating the size and quantity of particles per cubic volume of air. Large numbers like “class 100″ or “class 1000″ refer to FED_STD-209E, and denote the number of particles of size 0.5 µm or larger permitted per cubic foot of air. The standard also allows interpolation, so it is possible to describe e.g. “class 2000.”
Small numbers refer to ISO 14644-1 standards, which specify the decimal logarithm of the number of particles 0.1 µm or larger permitted per cubic metre of air. So, for example, an ISO class 5 cleanroom has at most 105 = 100,000 level (particles per m³).
Both FS 209E and ISO 14644-1 assume log-log relationships between particle size and particle concentration. For that reason, there is no such thing as zero particle concentration. Ordinary room air is approximately class 1,000,000 or ISO 9.
